Take Your Pick!

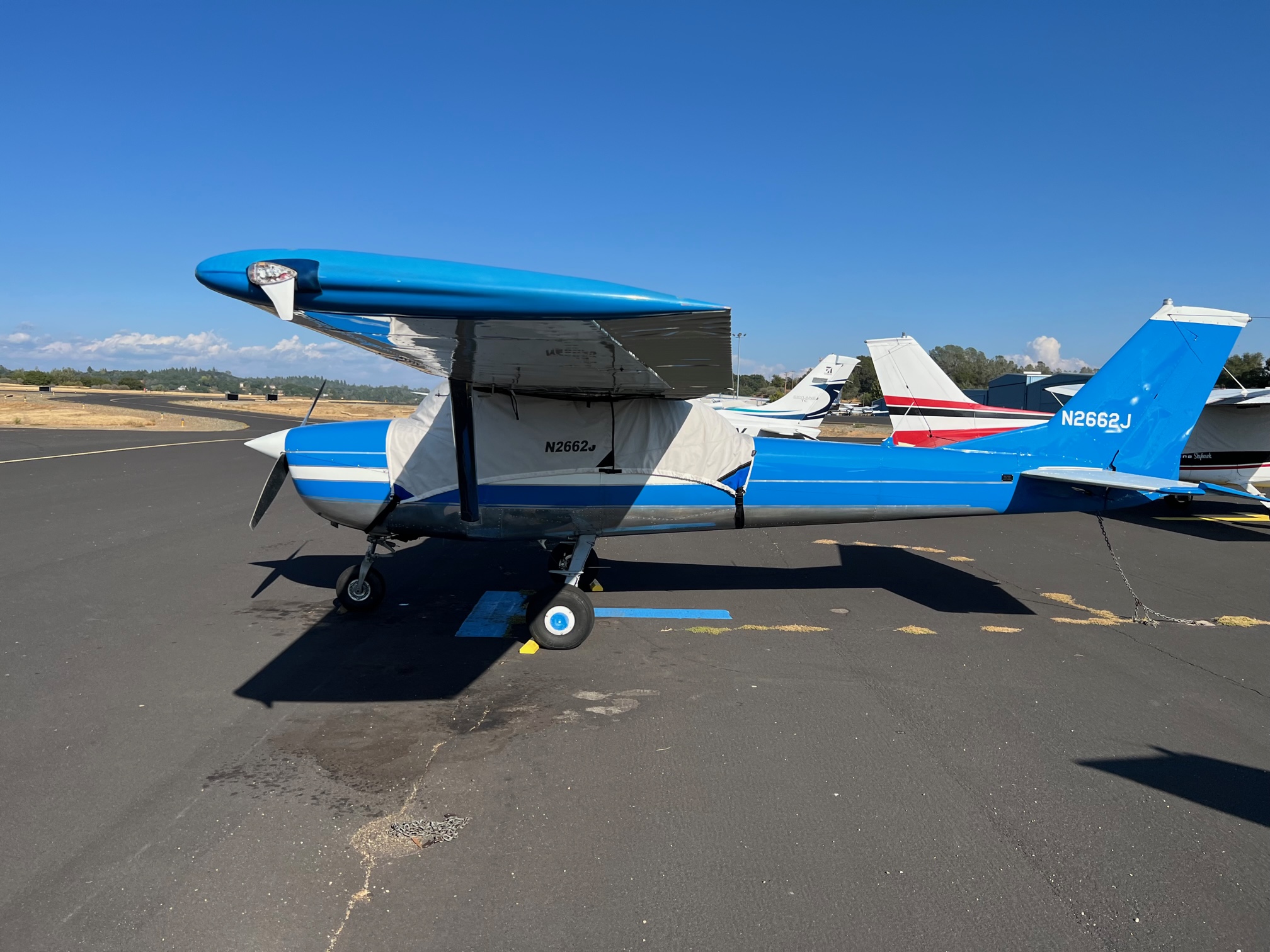

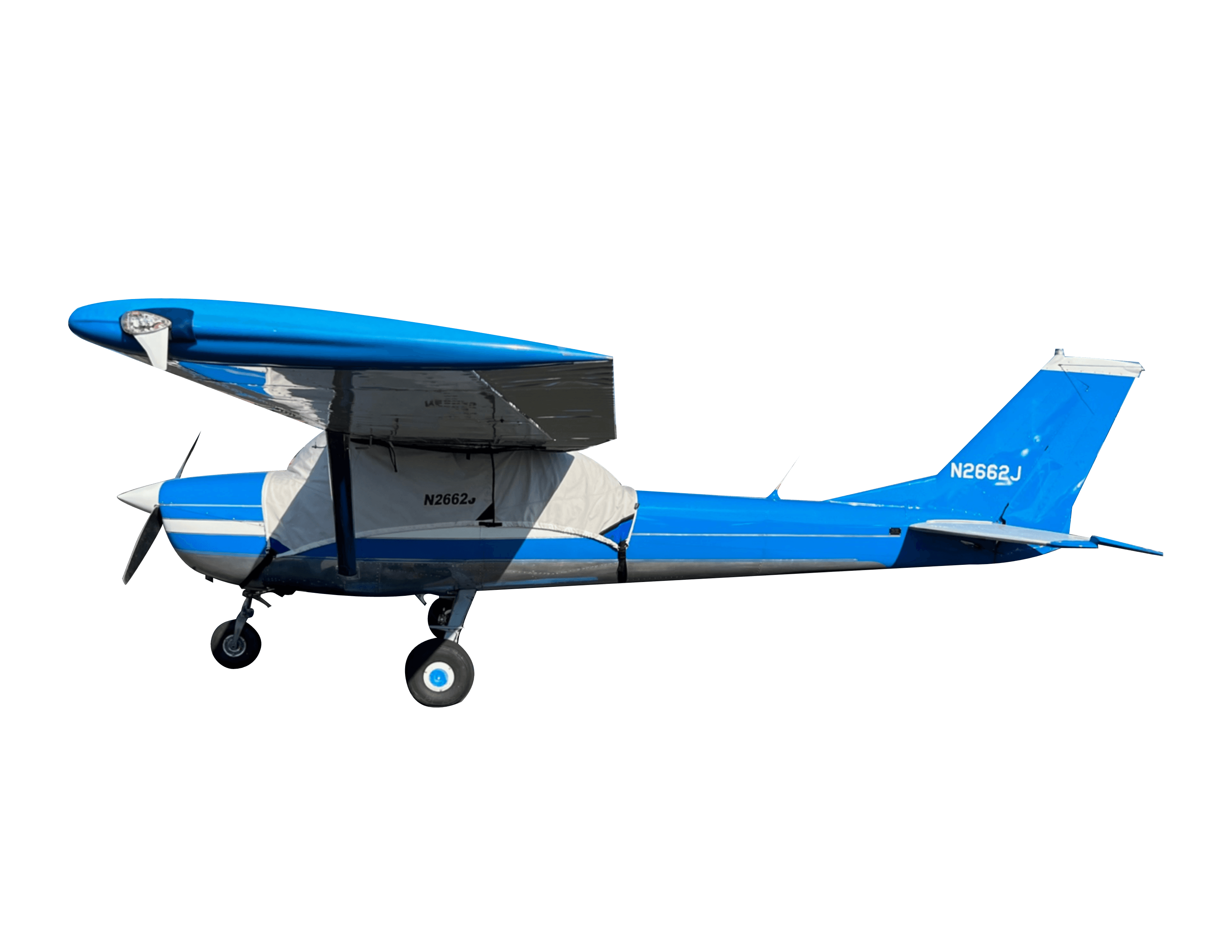

Cessna 150G

Tail #: N2662J
Nickname: "Juliet"
Hourly Rate: $125

Max Speed 102 KTS

Max Range 303 NM

Passengers 2 Place

Flight Specs

Powerplant: Continental O-200-A, 100 hp
Fuel Burn: 6.5 GPH
Rate of Climb: 670 FPM
Ceiling: 12,650 FT
Takeoff Distance: 735 FT
Landing Distance: 445 FT
Gross Weight: 1600 LBS
Empty Weight: 970 LBS
Maximum Payload: 630 LBS
Fuel Capacity: 26 Gal

Avionics

Steam Gauges

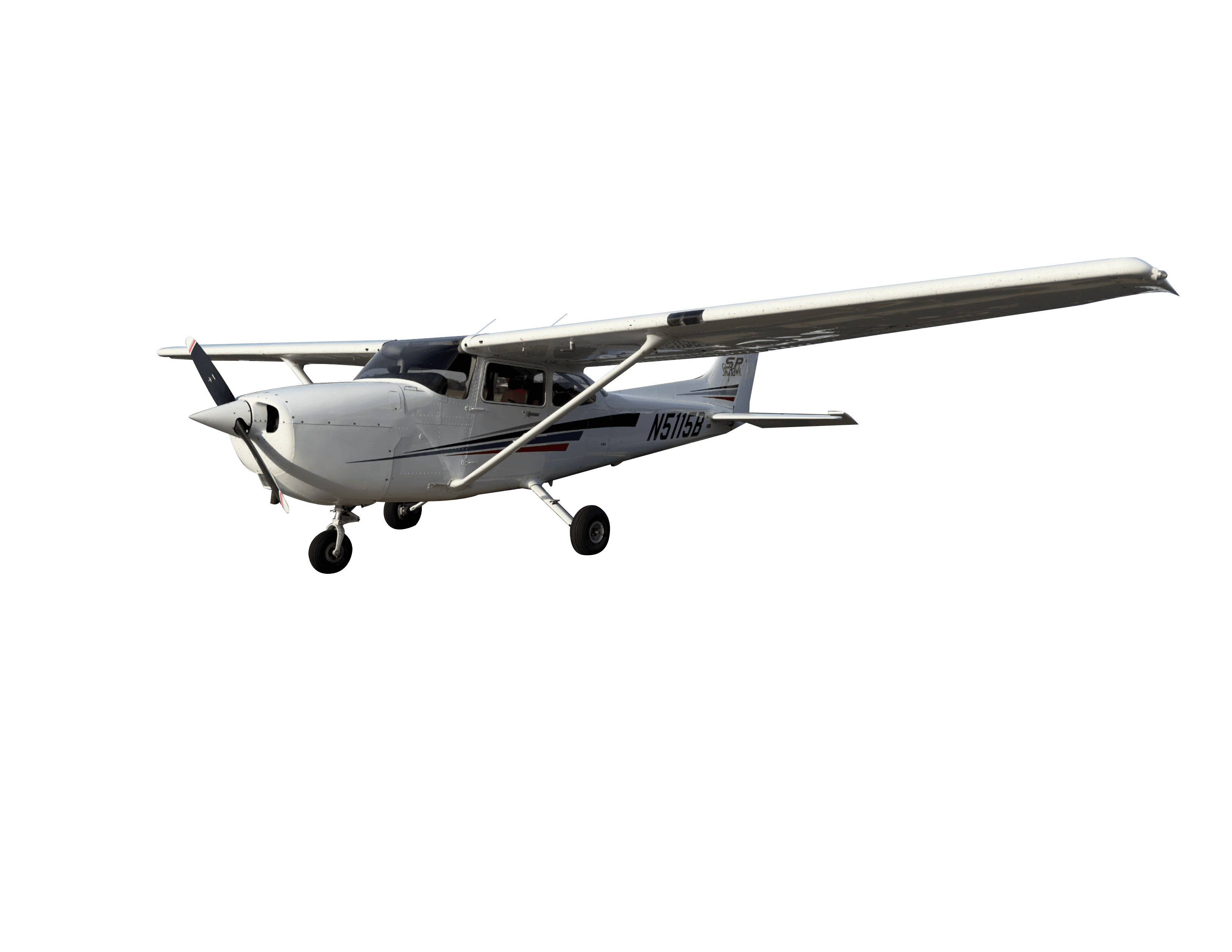

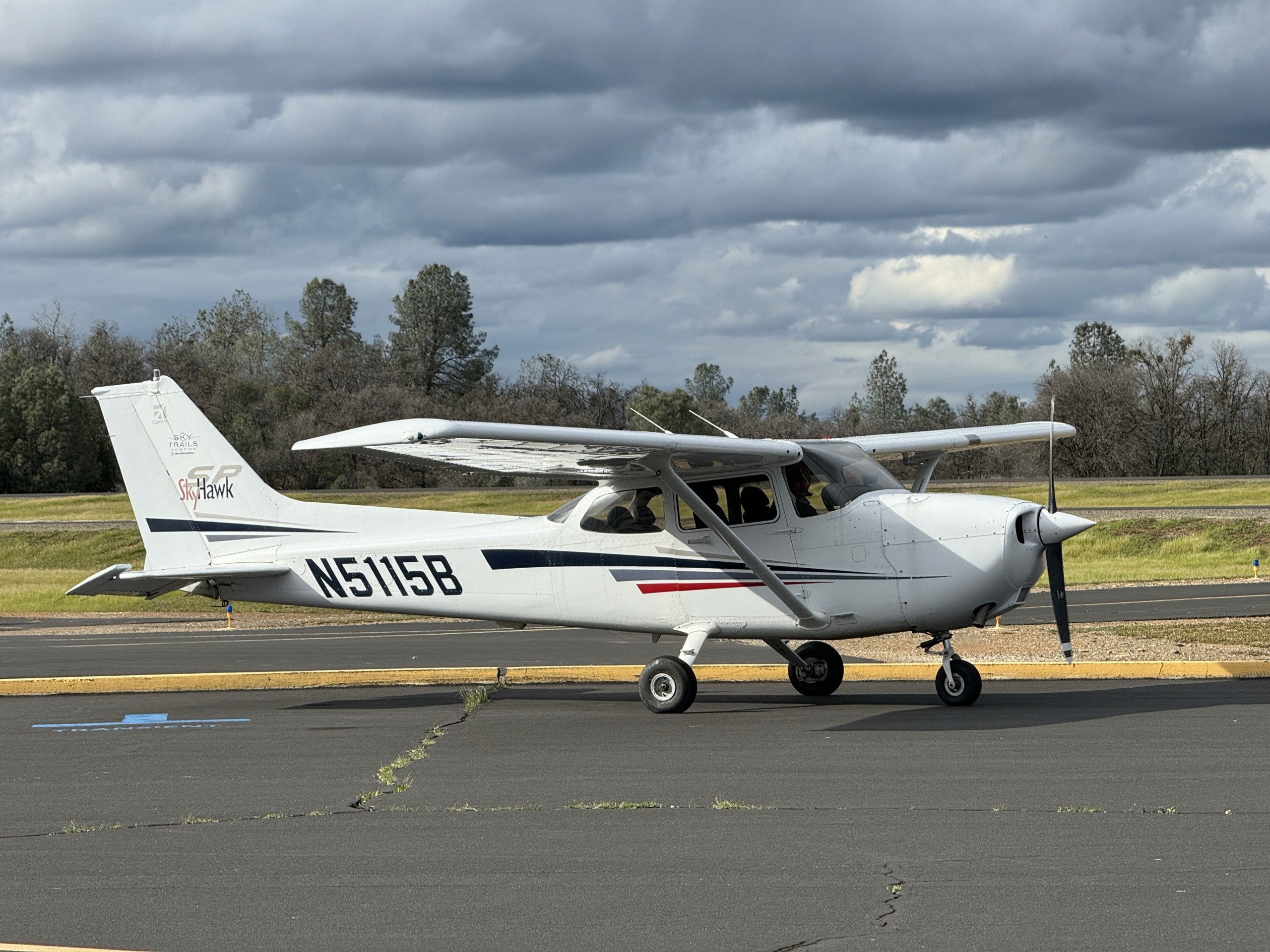

Cessna 172SP "Skyhawk"

Tail #: N5115B
Nickname: "Belinda"
Hourly Rate: $183

Max Speed 126 KTS

Max Range 736 NM

Passengers 4 Place

Flight Specs

Powerplant: Lycoming IO-360-L2A, 180 hp
Fuel Burn: 9.5 GPH
Rate of Climb: 730 FPM
Ceiling: 14,000 FT
Takeoff Distance: 960 FT
Landing Distance: 575 FT
Gross Weight: 2550 LBS
Empty Weight: 1642 LBS
Maximum Payload: 633 LBS
Fuel Capacity: 53 Gal

Avionics

Bendix King KLN 94
Bendix King KMD 550
Bendix King KAP 140 Autopilot

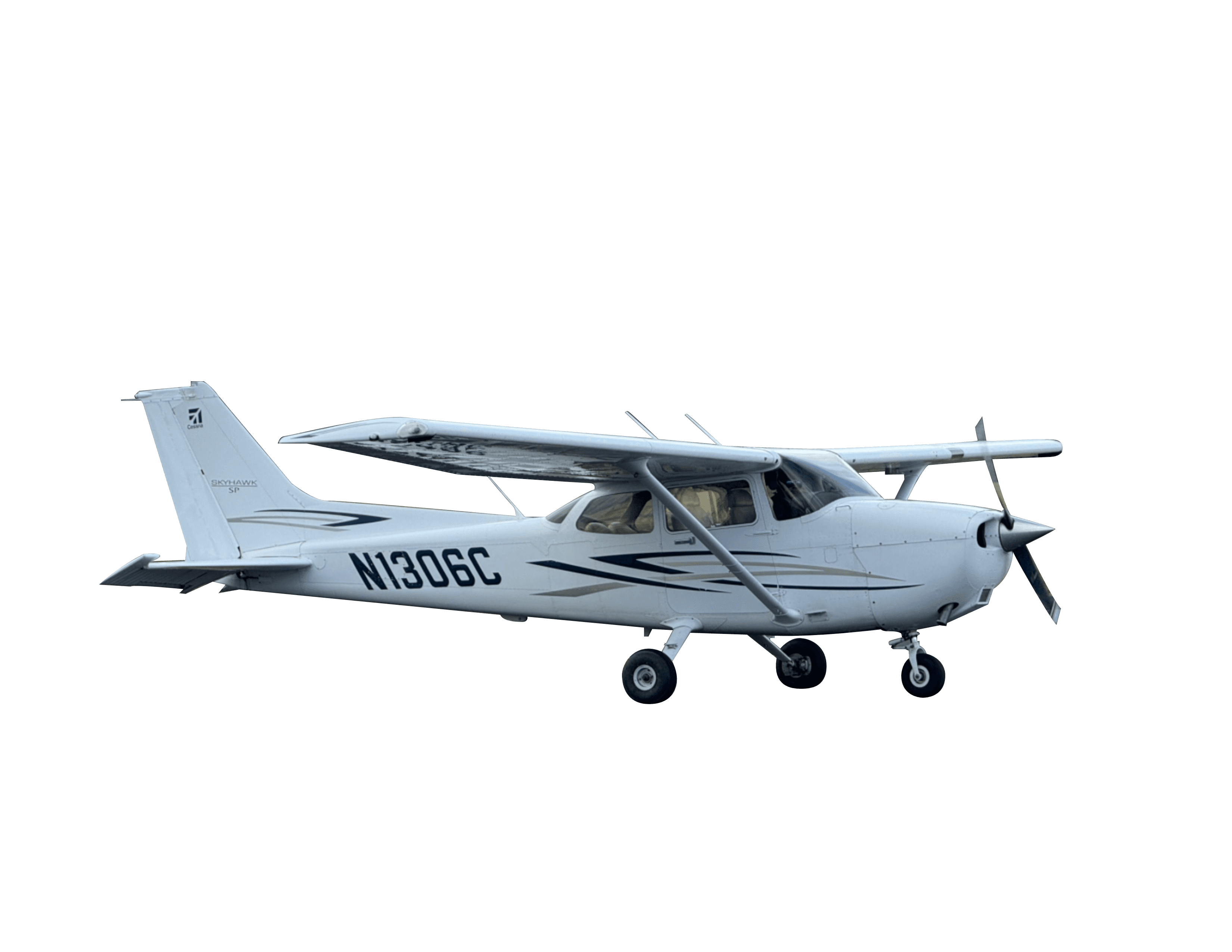

Cessna 172SP "Skyhawk"

Tail #: N1306C
Nickname: "Charley"
Hourly Rate: $193

Max Speed 126 KTS

Max Range 736 NM

Passengers 4 Place

Flight Specs

Powerplant: Lycoming IO-360-L2A, 180 hp
Fuel Burn: 9.5 GPH
Rate of Climb: 730 FPM
Ceiling: 14,000 FT
Takeoff Distance: 960 FT
Landing Distance: 575 FT
Gross Weight: 2550 LBS
Empty Weight: 1642 LBS
Maximum Payload: 633 LBS
Fuel Capacity: 53 Gal

Avionics

Garmin G1000
Bendix King KAP 140 Autopilot

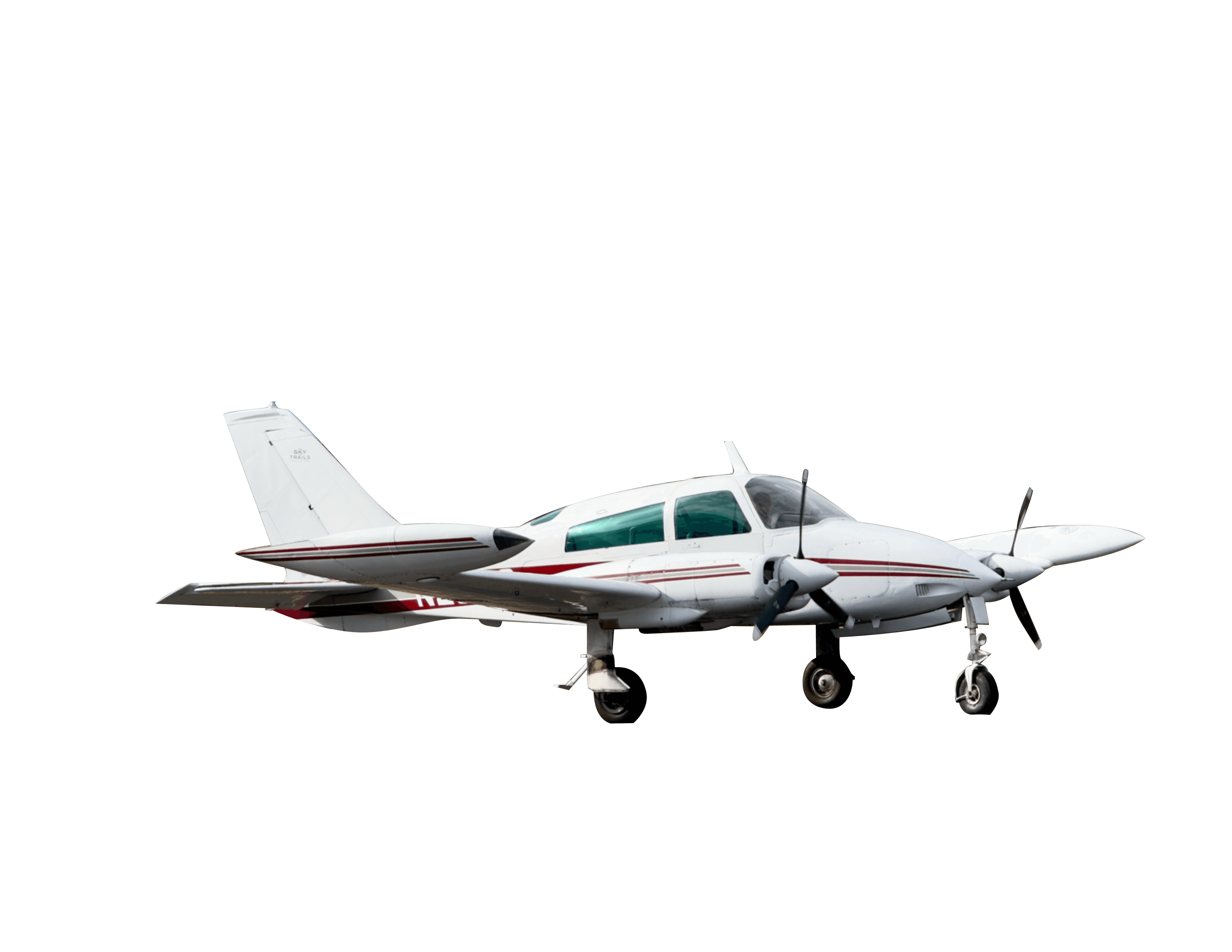

Cessna 310Q

Tail #: N20162
Nickname: "Stella"
Hourly Rate: $375

Max Speed 192 KTS

Max Range 1107 NM

Passengers 6 Place

Flight Specs

Powerplant: Continental IO-470-VO - 2 X 260 HP
Fuel Burn @ 75%: 25.5 GPH
Rate of climb: 1,495 FPM
Ceiling: 19,500 FT
Takeoff distance: 1,519 FT
Landing distance: 582 FT
Gross Weight: 5,300 LBS
Empty Weight: 3,214 LBS
Maximum Payload: 1,749 LBS
Fuel capacity: 164 GAL

Avionics

Garmin 530W
Garmin 430

Diamond DA-42

Tail #: N420TS
Nickname:
Hourly Rate: $400

Max Speed 192 KTS

Max Range 1,225 NM

Passengers 4 Place

Flight Specs

Powerplant: Continental CD-135 FADEC Controlled
Fuel Burn @ 75%: 10.6 GPH Jet A
Rate of climb: 1,100 FPM
Ceiling: 18,000FT
Takeoff distance: 1,200 FT
Landing distance: 1,115 FT
Fuel capacity: 76.4 GAL

Avionics

G1000

Socata TB20 GT "Trinidad"

Tail #: N868RS
Nickname: "Romeo"
Hourly Rate: $300

Max Speed 168 KTS

Max Range 885 NM

Passengers 4 Place

The aircraft is a five place, all-metal, low-wing, single-engine airplane, equipped with retractable tricycle landing gear.
This airplane is certificated in the normal category.  See the airplane’s P.O.H. for approved maneuvers. The airplane is approved for day and night VFR/IFR operations when properly equipped and certificated.

The airplane is powered by a horizontally opposed, six cylinder, direct drive, normally aspirated, air cooled, fuel injected engine.  The engine is a Lycoming Model IO-540-C4D5D and is rated at 250 horsepower.

The fuel system consists of two vented integral fuel tanks (one in each wing) with 86.2 total gallons usable fuel, a selector valve, a filter, an auxiliary fuel pump as well as an engine-driven fuel pump, a fuel distributor and six fuel-injection nozzles.  The fuel selector valve allows operation on CLOSED, LEFT, or RIGHT.  A dual indicator gives the manifold pressure as well as the fuel flow and pressure.  Fuel quantity is measured by four electrically-operated fuel quantity transmitters (two in each wing) and is shown by two fuel quantity indicators.
The airplane is equipped with a 28-volt, direct-current electrical system powered by a belt-driven 70-amp alternator installed on the engine and a battery.

Engine:


ModelLyc. IO-540-C4D5D
No. Cylinders6
Displacement541.5 cu. in.
HP250
Carbureted Or Fuel InjectedFuel Injected
Fixed Pitch/ Constant Speed PropellerConstant Speed


Fuel:


Fuel Capacity88.8 gallons
Min. Octane Fuel100
Avg. Fuel Burn at 75% power in standard conditions per hour15.9 gallons


Weights and Capacities:

N/A
Takeoff/Landing Weight Normal Category3,086 lbs.
Takeoff/Landing Weight Utility CategoryN/A
Standard Empty Weight1,994 lbs.
Max. Useful Load Normal Category1,092 lbs.
Max. Useful Load Utility CategoryN/A
Baggage Capacity143 lbs.
Oil Capacity12 quarts


Performance:


Do Not Exceed Speed187 KIAS
Max. Structural Cruising Speed150 KIAS
Stall Speed Clean70 KIAS
Stall Speed Landing Configuration59 KIAS
Climb Best Rate1200 FPM
Wing Loading24.1 lbs./sq. ft.
Power Loading12.3 lbs./hp
Service Ceiling20,000

At first glance, Socata’s new Trinidad 2000GT looks much like its predecessors in the company’s line of TB20 four-seat singles. And yet, you’re bound to notice that something has changed, something to make this airplane a tad more distinguished-looking. Look closer, and you’ll see that the vertical stabilizer has a new swept leading-edge fairing. That’s perhaps the most obvious of the many changes unique to this model.

This year’s 2000GT ushers in a new concept in Socata’s piston-single marketing theory: The full-boat, ultimate flagship that has just about every option you’d ever want as standard equipment. The panel and cabin are the big highlights, but there are some definite airframe improvements as well—improvements that will be incorporated in the rest of the TB9, TB20, and TB21 line. The TB21 is the turbocharged version of the TB20.

Chief among them is the increased headroom—three inches more than previous Trinidads, to be exact. Earlier TB20s aren’t so kind to headset users. The headset band is forever bumping against the headliner, and taller pilots sometimes find their head movements impaired because of the minimal headroom. There is a remedy for this problem—reclining the seat back—but some pilots don’t like the resultant semireclining seat position. In new TB20s such as the 2000GT, those issues are things of the past. Now, you can sit upright, headset and all. Together with the 50-inch-wide cabin, the Trinidad’s is one of the biggest in the single-engine market today.

Extremely comfortable seats have always been a Socata strong suit, and the 2000GT’s are certainly no exception. In the GT, leather seats and folding armrests are standard, making them ultracomfortable. Lumbar support is exemplary, and will be a welcome feature to any pilot whose back has suffered through long flights in most any other piston single.

Socata’s signature modular instrument panel has retained its traditional design. The panel is divided into three squarish assemblies, and these tilt forward to give technicians easy access to instruments and wiring harnesses. In the 2000GT, it’s what’s in the panel that really catches your eye.

Front and center, you’ll see a full-blown Honeywell Bendix/King avionics suite that includes the KMD-550 IHAS (Integrated Hazard Awareness System) display with moving map, a KFC-225 digital autopilot with built-in altitude preselect, a KCS-55A HSI, a KI-256 flight director, a KLN-94 color moving map GPS, plus dual VHF nav/coms and a KT-76A transponder. Oh, and there’s a PS Engineering PMA-7000 audio panel with an integral intercom and stereo CD-playing capability. A CD player isn’t standard, but you can plug one in to a dedicated jack. A Shadin fuel flow computer is also standard. One great thing about the Shadin is that it talks to the GPS so that you have real-time readouts of your fuel status and reserves for each trip you make.

And that’s just the pilot’s side of the panel. Over on the copilot’s panel is a second airspeed indicator, and an electrically powered standby attitude indicator. A pair of noise-attenuating Bose X or Sennheiser HMEC25 headsets is also included.

The weight penalty of all these avionics is partly offset by weight savings accomplished through the use of carbon fiber composite materials. The cabin overhead panel, main doors, and baggage door are all made of carbon fiber. The empty weight of the demonstrator flown for this article had a 1,994-pound empty weight. That would make its full-fuel (88.2 gallons) payload 575 pounds.

The KMD-550 serves as a multifunction display capable of providing the usual moving map and navigation functions, plus traffic, terrain, lightning, course, and E6B-type flight plan information. Integral to the 550 is a KDR-510 receiver that can receive and process uplinked signals for the display of ground-based information on nearby traffic and precipitation. Though not due to be certified until November, when that happens the 550 will be ready to show ADS-B or other uplinked traffic information when the FAA makes these services available, as well as uplinked weather radar imagery, uncontaminated by the attenuation effects that plague so many airborne weather radar installations in light general aviation airplanes. If an optional BFGoodrich Stormscope or Skywatch air traffic surveillance unit is installed, then their imagery can be displayed on the KMD-550’s color LCD.

A sharp eye during a preflight walkaround would reveal some other new features on the 2000GT. One is an extra access door on the left side of the cowling. Open it, and you can fill the TKS propeller anti-ice system’s half-gallon fluid reservoir. An electric pump sends the TKS glycol solution from the reservoir to a propeller slinger ring, which then distributes a spray of fluid throughout the rotating propeller disc. In the cockpit, you can select either a high or low flow rate. In the High position, the glycol solution will last for one hour, 35 minutes; low flow makes the fluid last about two hours, 10 minutes. Yes, this system is also standard, but the airplane isn’t certified for flight into known icing unless a full TKS system is installed—another option. Even so, propeller ice protection can come in very, very handy in escaping inadvertent icing conditions, and the residual spray from the prop disc can provide a small measure of ice protection to other portions of the airframe, such as the windshield and inboard sections of the wing leading edges.

All the windows, by the way, have been increased in size, giving what Socata claims is 20 percent more viewing area over previous TB20s. The baggage door has been enlarged, too. An odd triangular shape, this door has been given a 40-percent boost in size—a necessary change, in our opinion, because older baggage doors were simply too small to accommodate bulkier bags or other items.
Flying the 2000GT proved to be a joy. The airplane is solid in pitch and roll axes, though a mite heavy in the aileron force department. Still, that can be an advantage when hand-flying in instrument conditions. Down low, at 3,000 feet msl over the Maryland countryside, Socata factory representative Earle Boyter and I had a power setting of 23 inches of manifold pressure; 2,500 propeller rpm; and a fuel flow of 16 gph for a 75-percent cruise from the 250-horsepower Textron Lycoming IO-540. True airspeed at our higher-than-standard OAT worked out to be 155 KTAS. Up at 8,000 feet, we would have been meeting the 160-kt mark, and could have flown some 900 miles with 45-minute IFR fuel reserves.

Pattern work is a breeze. For takeoff, turn on the fuel pump; set 10-degree takeoff flaps by pressing to the first detent on the paddle-shaped, console-mounted flap switch; dial in rudder trim to the takeoff position; apply full throttle; rotate at 68 kt; lift off at 75; retract the landing gear; and climb to pattern altitude at 95 kt.

Gear and takeoff flaps can be extended at airspeeds below 129 kt, and once below 103 kt the final, 40-degree landing flap setting can be selected. On base and early final, airspeed should be targeted around 85 to 90 kt. Slow to 73 kt on short final—depending on conditions (add half the gust value in nonsteady wind conditions)—and keep some power on as you near the runway. Those 40 degrees of flap create a lot of drag, and you’ll sink mightily if you don’t stay on top of your power and sink rate. There are no tricks to the flare, and the trailing-link landing gear make for smooth touchdowns.

Socata has just begun taking orders for the 2000GT, and demonstration flights continue. In the meantime, Socata has played another round of corporate musical chairs. It began life as the Morane-Saulnier Company in 1911 and became part of Sud Aviation in 1966, which in turn was joined with Nord Aviation to become Aerospatiale in the late 1960s. In 1998 Socata came under the Aerospatiale Matra banner, then in August 2000 was made part of a new entity: EADS (European Aeronautic Defense and Space company)—the product of the merger of France’s Aerospatiale Matra, Spain’s CASA, and Germany’s DASA. This makes Socata part of one of world’s largest aerospace conglomerates. Let’s hope that EADS’ resources let Socata continue to provide the American market with comfortable luxury machines like the 2000GT—and the service support to go with them.
